Exporting Document with nbconvert

After data analysis and visualization, you may need to report the results in a familiar format to many people from different teams and easy to share, such as PDF or HTML. One library in Python that can help with this task is nbconvert.

Using nbconvert enables:

  • presentation of information in familiar formats, such as PDF.
  • publishing of research using LaTeX and opens the door for embedding notebooks in papers.
  • collaboration with others who may not use the notebook in their work.
  • sharing contents with many people via the web using HTML.

Contents:

Installation

Step 1: Prepare your current new environment and activate it

In your Terminal or Command Prompt, type the command:

Windows OS

cd [virtual_environmet_name]\Scripts\activate

macOS & Linux

source [virtual_environmet_name]/bin/activate

Make sure you’re in the right directory. If you using Anaconda/Miniconda/Miniforge environtment, use this command:

conda activate <ENV_NAME>

Official Documentation:

Step 2: Installing Nbconvert

In your Terminal or Command Prompt, type the command:

pip install nbconvert

OR

conda install nbconvert

Step 3: Installing Pandoc

For converting markdown to formats other than HTML, nbconvert uses Pandoc (1.12.1 or later). Please go to their website to download the latest stable release.

Once your download is complete, double click the .msi file (Windows OS) or .pkg file (macOS) to install it.

Step 4: Installing TeX

For converting notebooks to PDF (with –to pdf), nbconvert makes use of LaTex and the XeTeX as the rendering engine.

Note: This file download and installation usually takes time due to the its size. Make sure you have sufficient internet connection.

For Windows Operation System:

  1. Check if your computer meet the MikTek’s prerequisites
  2. Go to MikTeX download page
  3. On Windows sub tab, click ‘Download’ blue button. It might takes a while to download.
  4. Once your download is complete, double click the .pkg file to install it.
  5. For more installation step-by-step guidance, read the tutorial.
    • install MiKTeX users only, update auto (not the ask me first)

Because nbconvert depends on packages and fonts included in standard TeX distributions, if you do not have a complete installation, you may not be able to use nbconvert’s standard tooling to convert notebooks to PDF.

Using as a command line tool

If you wonder why we use command line instead using GUI menu on jupyter notebook, we do this because it offers more flexibility such as we can choose to hide some code, some cell, some output or hide all of them. Of course you can still use the Download as menu if you don’t need customization.

Make sure your command-line prompt already in the ipynb file directory. If not, please follow the steps below.

  1. Open File Manager, find the directory of the folder that holds the .ipynb file you want to open
  2. Copy the folder directory (only up to the folder directory, not the file)
  3. Open Command Prompt (Windows) or Terminal (macOS dan Linux)
  4. Change directory in Command Prompt with the command cd (cd stands for change directory)
    • example: cd C:\Users\hwulanayu\Documents\
    • If your directory has spaces, use quotes. example: cd "C:\Users\hwulanayu\template folder"
    • Make sure the file storage drive with your Command Prompt base directory is the same. If different, please first change the drive directory by using cd .. to backtrack to the root directory. example of changing directory from C to D drive:
    (base) C:\Users\hwulanayu> cd ..
(base) C:\Users>cd ..
(base) C:\>cd D:
(base) D:\> cd D:\Users\hwulanayu\Documents`

Run the nbconvert

The command-line syntax to run the nbconvert script is:

jupyter nbconvert <FILE_NAME>.ipynb --to <FORMAT>

This will convert the Jupyter notebook file notebook.ipynb into the output format given by the FORMAT string.

Supported output formats

Many formats are supported by nbconvert, such as Markdown, LaTex, executable scripts, and others. However, the formats we will discuss in this documentation are HTML and PDF.

IPYNB to HTML format file

Official Documentation: html format

IPYNB to PDF

Optionally you can specify authors, title and date in the notebook’s metadata. These will be used to render the header of the LaTeX document.

{
    "authors": [
        {
            "name": "Jane Doe"
        },
        {
            "name": "John Doe"
        }
    ],
    "date": "May 2023",
    "title": "Q1 Data Report 2023",
    "kernelspec": { },
    "language_info": { }
}

If no date is specified, today’s date will be used (i.e. the date when the document is re/compiled). Use an empty string to suppress the date.

The values in the notebook can be overridden by the command line arguments --LatexPreprocessor.title, --LatexPreprocessor.date and --LatexPreprocessor.author_names (specify this argument multiple times for each individual author name).

Example:

jupyter nbconvert <FILE_NAME>.ipynb --to <FORMAT>
--LatexPreprocessor.title <"YOUR_FILE_TITLE">

Custom template default with LaTex

Alternatively, if you still want to use the default article template but want to add a table of contents or other customizations, you can use the LaTeX syntax. Notebooks that contain LaTeX syntax can use the command --TemplateExporter.exclude_input=True to remove LaTeX syntax in the PDF output.

Example of LaTeX syntax with %% magic command from IPython kernel:

%%latex
\newpage

%%latex
\tableofcontents

%%latex
\hfill

Note: you might want to remove input cell with tags if you use latex syntax.

CLI Flags

When using Nbconvert from the command line, a number of aliases and flags are defined as shortcuts to configuration options for convience.

The following flags are defined:

for more CLI flags, see the Official Documentation

Converting multiple notebooks

Multiple notebooks can be specified from the command line:

jupyter nbconvert notebook*.ipynb

jupyter nbconvert notebook1.ipynb notebook2.ipynb

or via a list in a configuration file.

Merge multiple notebooks

This code can be applied on command line prompt or jupyter notebook. If you doing it on CLI, activate Python first with python command. example:

(base) hwulanayu@MacBook-Air ~ % python
Python 3.9.16 (main, Mar  8 2023, 04:29:24)
[Clang 14.0.6 ] :: Anaconda, Inc. on darwin
Type "help", "copyright", "credits" or "license" for more information.
>>>

Either on CLI or jupyter notebook, make sure import nbformat first.

Reading the notebooks

The official Jupyter Notebook format is defined with this JSON schema, which is used by Jupyter tools to validate notebooks. .read() function of nbconvert, reads the notebook in JSON format.

Official Documentation: notebook file format.

import nbformat

first_notebook = nbformat.read("example_file_1.ipynb", as_version=4)
second_notebook = nbformat.read("example_file_2.ipynb", as_version=4)
third_notebook = nbformat.read("example_file_3.ipynb", as_version=4)

Create new merged notebook

Create a new notebook that will have the merged contents of the above three notebooks. We copy the first notebook JSON metadata on version 4.

final_notebook = nbformat.v4.new_notebook(metadata=first_notebook.metadata)

Concat the notebooks

concat all the cell values.

final_notebook.cells =  first_notebook.cells + second_notebook.cells + third_notebook.cells

Saving the notebook

nbformat.write(final_notebook, 'final_notebook.ipynb')

Official Documentation: nbconvert API

Removing cells, inputs, or outputs

When converting Notebooks into other formats, it is possible to remove or hide parts of a cell, or entire cells, using preprocessors. The notebook will remain unchanged, but the outputs will have certain pieces removed. Here are two primary ways to accomplish this.

The most straightforward way to control which pieces of cells are removed is to use cell tags. These are single-string snippets of metadata that are stored in each cells “tag” field. The TagRemovePreprocessor can be used to remove inputs, outputs, or entire cells.

You can add tag for cell that has code that you would like to hide or remove. Add tags to a cell:

  1. Click View Menu on top of your jupyter notebook
  2. Click Cell Toolbar
  3. Choose Tags
  4. Now, all your your code cells have tags toolbar. Add a tag hide_cell, or remove_cell, or hilangkan (it can be any string) to the selected cell.

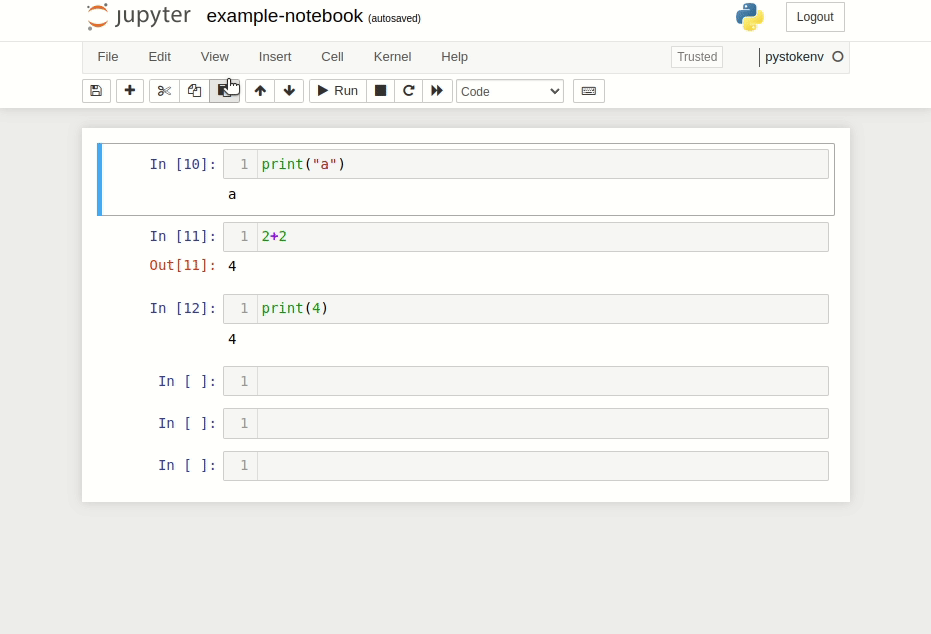

The animation below from Aleksandra Płońska and Piotr Płoński shows how it can be done:

To return the cell code without the Tags toolbar, click View > Cell Toolbar > choose None.

Below are the command-line syntax using the CLI to remove cells, input, and output cells with a certain cell tag:

Remove cells

jupyter nbconvert <FILE_NAME>.ipynb --to <FORMAT>
--TagRemovePreprocessor.remove_cell_tags <REMOVE_CELL_TAG>

Remove input code cells

jupyter nbconvert <FILE_NAME>.ipynb --to <FORMAT>
--TagRemovePreprocessor.remove_input_tags <REMOVE_INPUT_TAG>

Remove output cells

jupyter nbconvert <FILE_NAME>.ipynb --to <FORMAT>
--TagRemovePreprocessor.remove_all_outputs_tags <REMOVE_OUTPUT_TAG>

This additional example demonstrates using the CLI to combine remove cells and hide input code cells with a certain cell tag:

jupyter nbconvert mynotebook.ipynb --TagRemovePreprocessor.remove_cell_tags remove_cell
--TagRemovePreprocessor.remove_input_tags --remove_input_cell

Handling Installation Errors

error 1

(env) C:\Users\hwulanayu\env\Scripts>jupyter notebook

error: Microsoft Visual C++ 14.0 or greater is required. Get it with "Microsoft C++ Build Tools": https://visualstudio.microsoft.com/visual-cpp-build-tools/
      [end of output]
  note: This error originates from a subprocess, and is likely not a problem with pip.
  ERROR: Failed building wheel for pysqlite3
Failed to build pysqlite3
ERROR: Could not build wheels for pysqlite3, which is required to install pyproject.toml-based projects

Solved by: installing the C++ build tools

error 2

If you happen to use sqlite library on your jupyter notebook.

(env) C:\Users\hwulanayu\env\Scripts>jupyter notebook

Traceback (most recent call last):
  File "C:\Users\hwulanayu\anaconda3\lib\runpy.py", line 197, in _run_module_as_main
    return _run_code(code, main_globals, None,
  File "C:\Users\hwulanayu\anaconda3\lib\runpy.py", line 87, in _run_code
    exec(code, run_globals)
  File "C:\Users\hwulanayu\env\Scripts\jupyter-notebook.EXE\__main__.py", line 4, in <module>
  File "C:\Users\hwulanayu\env\lib\site-packages\notebook\notebookapp.py", line 83, in <module>
    from .services.sessions.sessionmanager import SessionManager
  File "C:\Users\hwulanayu\env\lib\site-packages\notebook\services\sessions\sessionmanager.py", line 12, in <module>
    from pysqlite2 import dbapi2 as sqlite3
ModuleNotFoundError: No module named 'pysqlite2'

Solved by: Copy C:\ProgramData\Anaconda3\Library\bin\sqlite3.dll to C:\ProgramData\Anaconda3\DLLs\sqlite3.dll OR find sqlite3.dll in window search. Open the file location. Copy the file to the DLL folder.

error 3

(env) C:\Users\hwulanayu\env\Scripts>jupyter nbconvert markdown_text_formatting.ipynb --to html

    preprocessor_cls = import_item(preprocessor)
  File "C:\Users\hwulanayu\env\lib\site-packages\traitlets\utils\importstring.py", line 30, in import_item
    module = __import__(package, fromlist=[obj])
ModuleNotFoundError: No module named 'jupyter_contrib_nbextensions'

Solved by: pip install jupyter_contrib_nbextensions

error 4

(env) C:\Users\hwulanayu\Documents\handbook>jupyter nbconvert Working_with_SQL_Database.ipynb --to html

  File "C:\Users\hwulanayu\env\lib\site-packages\mistune\block_parser.py", line 291, in _iter_render
    yield method(children, *params)
  File "C:\Users\hwulanayu\env\lib\site-packages\nbconvert\filters\markdown_mistune.py", line 181, in block_code
    lang = info.strip().split(None, 1)[0]
IndexError: list index out of range

Solved by: specified the language after the ``` in one of my code blocks.. Ref https://github.com/jupyter/nbconvert/issues/1505
